What is Telescopic Automatic Photocell Doors?

Telescopic Automatic Photocell Doors

Telescopic Photocell Glass Doors

 MAdoors Photocell automatic glass Telescopic Sliding Door System is an ideal solution for narrow entrances. With this system, the sliding blades open onto each other at relative speeds. Telescopic sliding doors at the entrances where other sliding door systems cannot provide the required passage space, eliminate the passage problem thanks to their sliding wings opening on each other. Telescopic sliding door units have been developed in order to use the building exterior and interior entrances in the widest opening. Telescopic radar glass sliding doors are a great solution with the way they work, where the space is not suitable for a normal sliding door.

 MAdoors System Telescopic Sliding Doors are ideal for entrances with limited space, partitioning corridors or to expand and maximize access to narrow spaces. As a result of the imagination and hard work of our team, MAdoors's telescopic sliding glass doors have multiple options for customisation and are perfectly adaptable to all types of structures. This ability of adapting to architectural space offers a harmonious aesthetic which results in the elegant doors that characterise us. The telescopic sliding doors combine the high performance and characteristic design of the classic MAdoors automatic sliding doors, offering an elegant and efficient solution to the specific needs of each space. Taking into consideration the comfort of the user, the telescopic doors are bi-part or single-slide leaf opening and provide maximum security and offer added value of comfort thanks to its automatic opening and closing system . Photocell radar, tempered laminated glass automatic telescopic winged glass door systems offer different options with the possibility of opening on one or both sides.

Functions Used in the Door

The door can be left completely open.
The door can be left completely closed and locked.
Canceling one of the inner or outer sensors
50% opening of the door (winter position)
Our telescopic wing photocell glass door systems can be manufactured with 2 wings or 3 wings that open on top of each other. As in normal glass door systems with photocell, glass wings in our telescopic wing radar door systems can be produced without aluminum frame, only as glass wing to offer more aesthetic solutions to your building.
5

Telescopic Automatic Photocell Doors

10

Technical Specifications

Teknik Özellikler
Besleme 80 V - 250 V AC / 50 - 60 Hz.
Motor 24 V 65 W DC Fırçasız Motor
Elektronik Kontrol Ünitesi Mikroprosesör
Çekeceği Akım 2.0 A
Çalışma Sıcaklığı -20º C / +50º C
Kapasite 150 kg x 1 (tek kanat) / 120 x 2 (çift kanat)
Makara Sistemi Güçlendirilmiş 3 Adet Plastik (derlin) tekerlek
Aktarma Trigger Kayış
Açılma Hızı 20 - 50 cm / s (tek kanat) --- 20 - 45 cm / s (çift kanat)
Kapanma Hızı 20 - 50 cm / s (tek kanat) --- 20 - 45 cm / s (çift kanat)
Açık Kalma Süresi 0 - 9 saniye (ayarlanabilir)
Sürekli Enerji Kaynağı UPS (opsiyonel)
Çarpma Fonksiyonu Herhangi bir engele çarpma esnasında sistem devreye girer ve geri açar



Standart ve Opsiyonel Özellikler
Uzaktan Kumanda Standart
Emniyet Fotoseli Standart
Aktif veya Pasif Infrared Sensörler Standart
Parmak İzi Kontrolü   Opsiyonel
Kodlu Tuş Takımı ve Proximity   Opsiyonel
Özel Eloksal Renkleri   Opsiyonel
Paslanmaz Çelik Uygulama   Opsiyonel
Özel Renkli Cam   Opsiyo

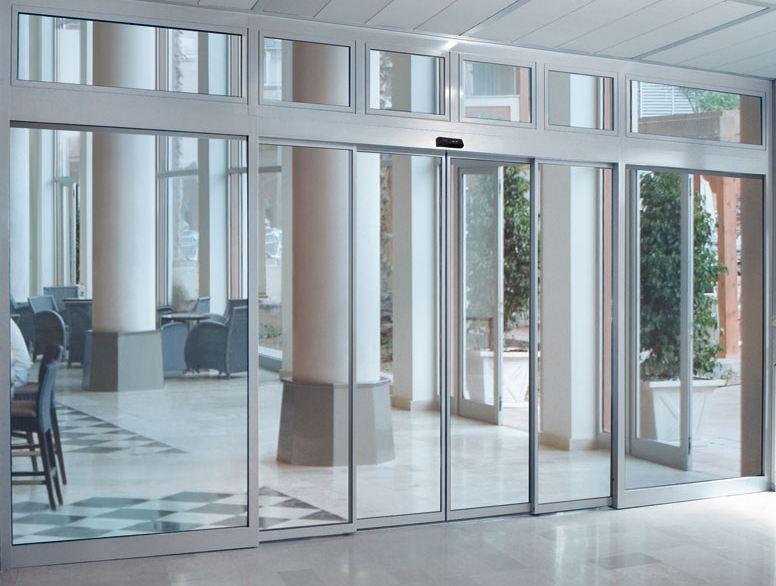

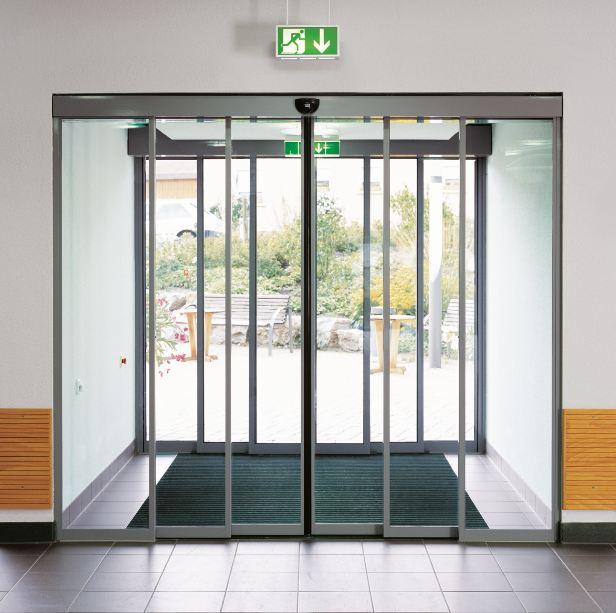

Telescopic Automatic Photocell Doors Photos
