What is Automatic Vehicle Restraint ?

Automatic Vehicle Restraint

 If you are looking for a solution to stop your trucks while loading, you have come to the right place. The Madoors Truck Wheel Stopper is an excellent solution for your need.

 There is a great deal of risk involved in loading the goods in the factory into the trucks. Trucks can move at this time. Depending on this movement, accidents occur and people are injured.

 Our unique and registered solution to prevent these events is Madoors Truck Wheel Stopper. With this product, loads are no problem without encountering bad events. It prevents vehicles approaching the loading ramp from sliding forward during operation. This is ideal for loading bay, factories, warehouses and garages.

 Madoors Truck Wheel Stopper is manufactured both pneumatic and hydraulic and has 60 tons of axle load resistance. The product can operate with 380 volts and 220 volts ac voltage. The assembly is galvanized, absolutely rustproof.

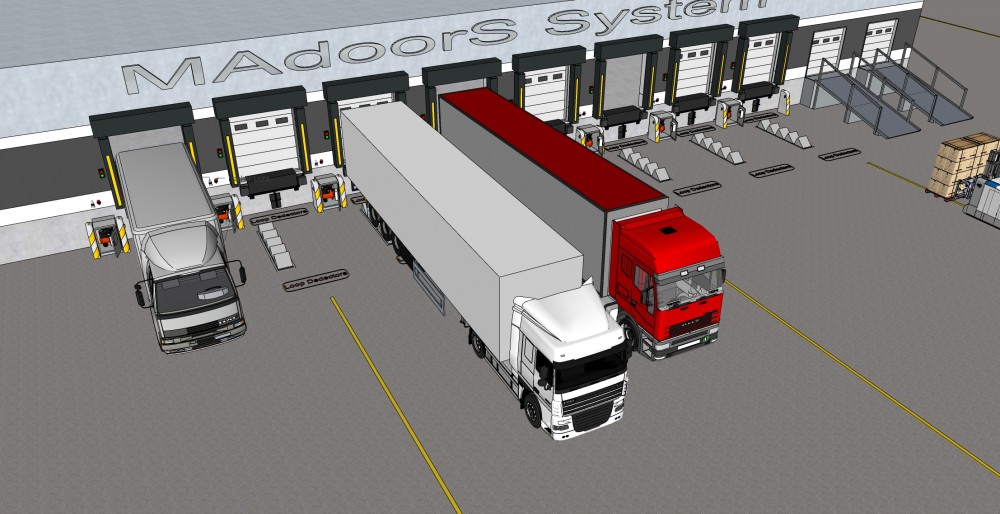

  Automatic vehicle restraint The MAdoors wheel stopper automatic system represents a further step forward for safety of vehicles and people during the loading/unloading operations. Easy to use, MAdoors guarantees a safe and continuous function and is at the forefront when it comes to comply with standards in force. This prevent the sudden exit of the truck anchored to the dock leveler.

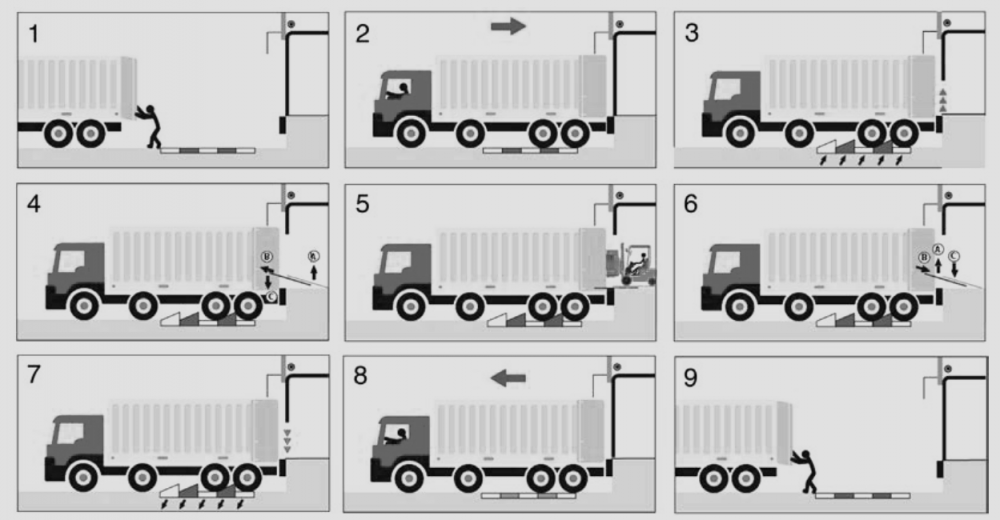

 The usual working procedure is next: MAdoors Automatic Vehicle Restraint Truck Wheel Stopper Systems Of Loading Dock can be operated (truck locking or unlocking) only if the dock leveler is in the rest position and the sectional door is closed The sectional door can only be opened if the madoors system wh-200 is in the locked position (truck locked) The dock leveler can only be operated if the madoors system wh-200 is in the locked position (truck locked) This working procedure makes it impossible for the truck the sudden exit before the end of the loading/unloading operations.

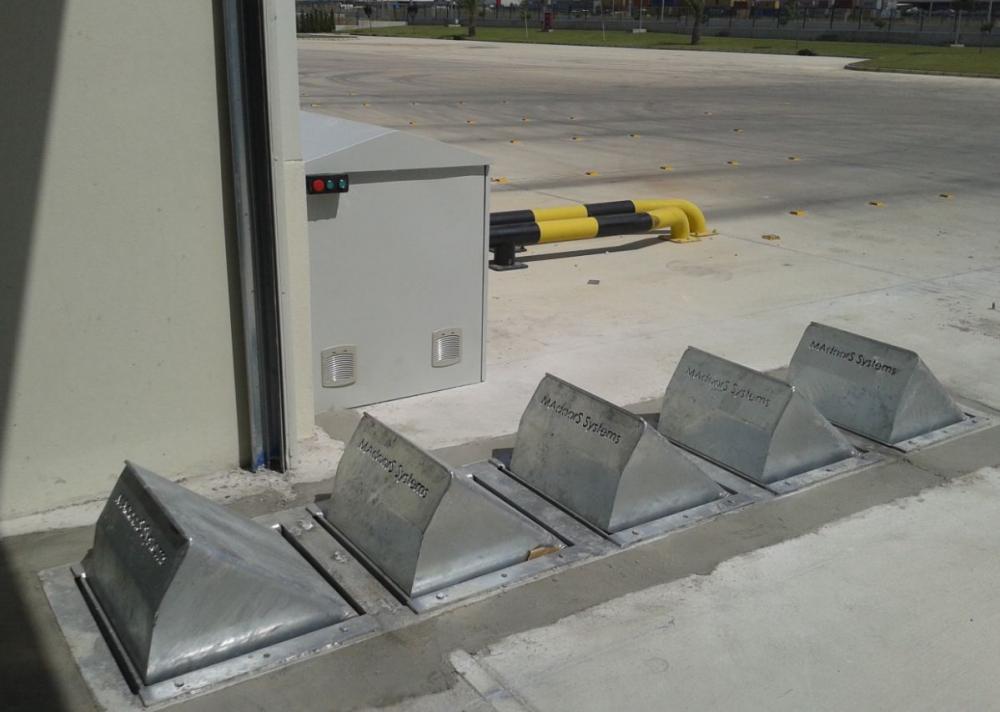

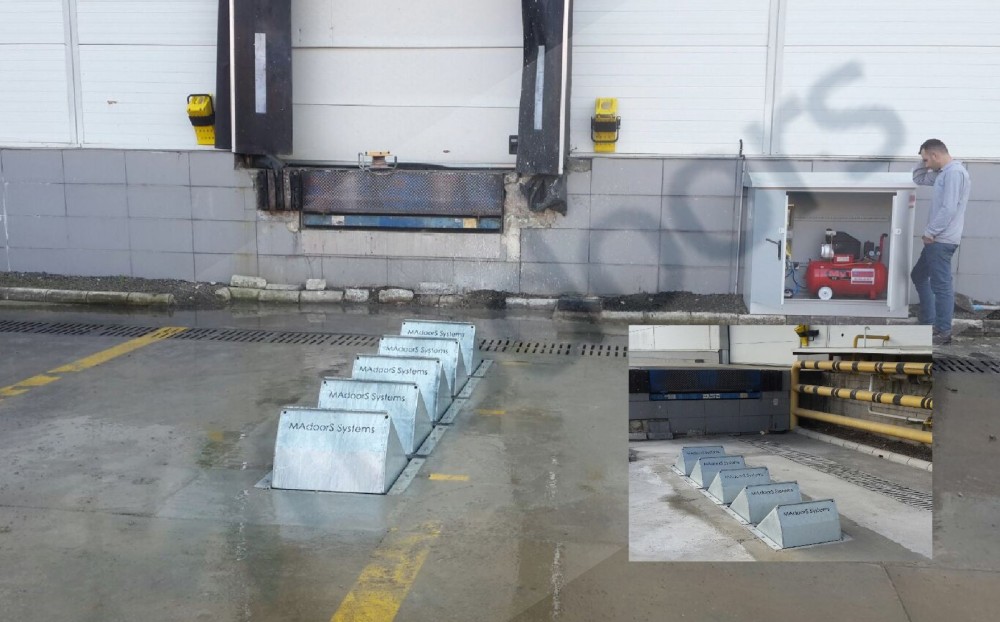

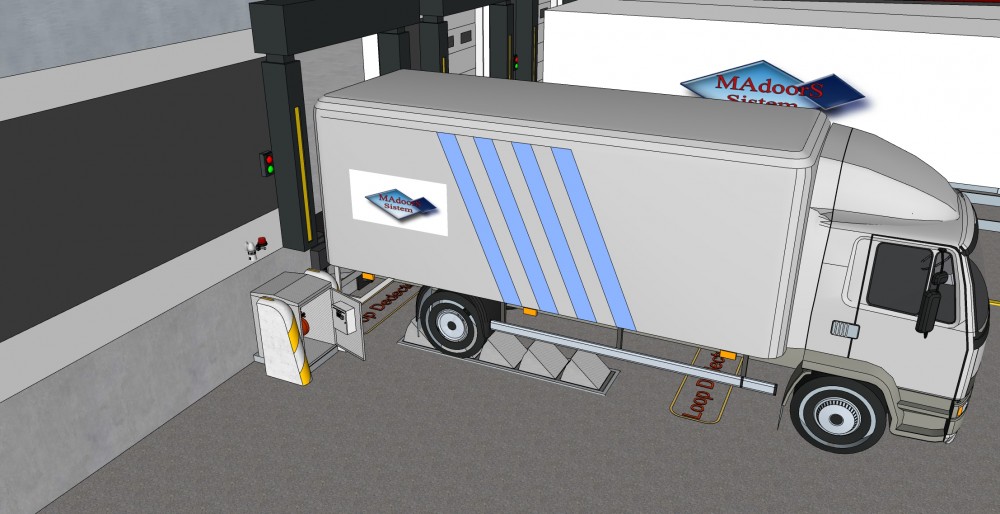

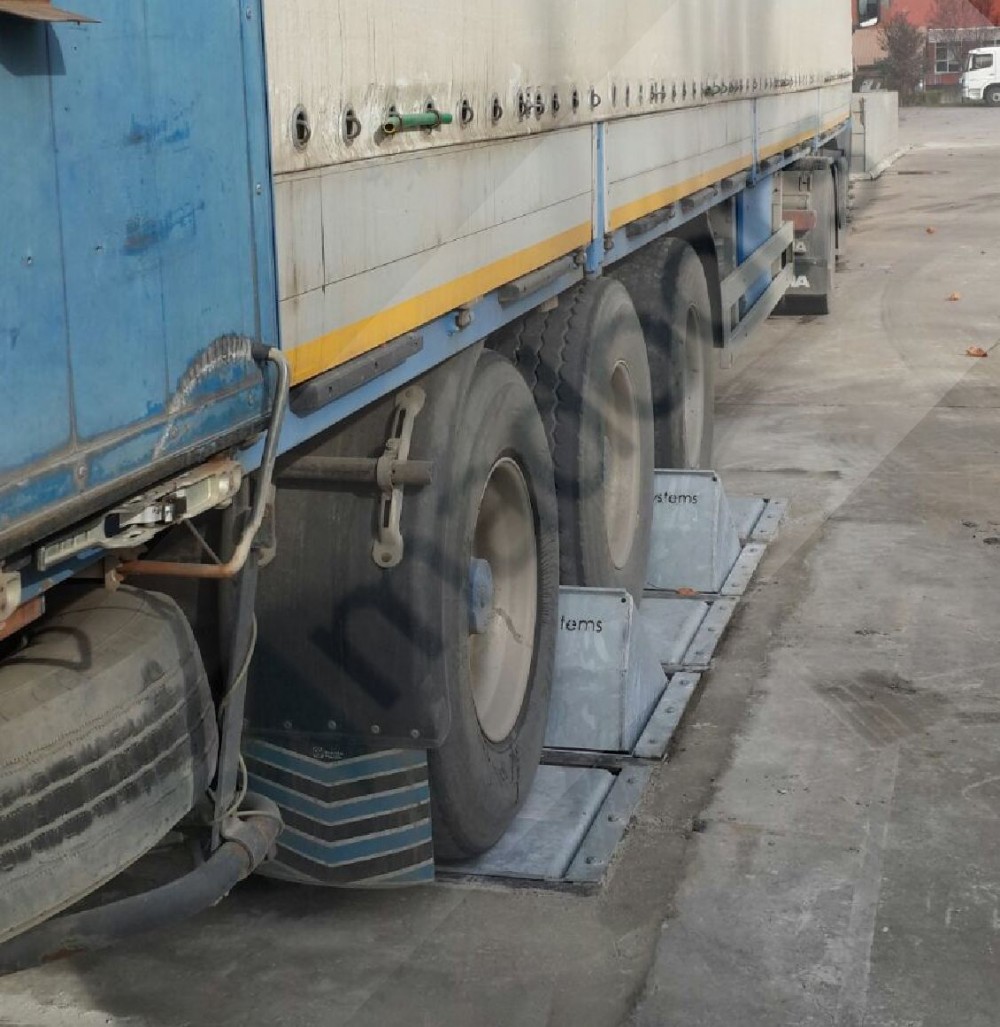

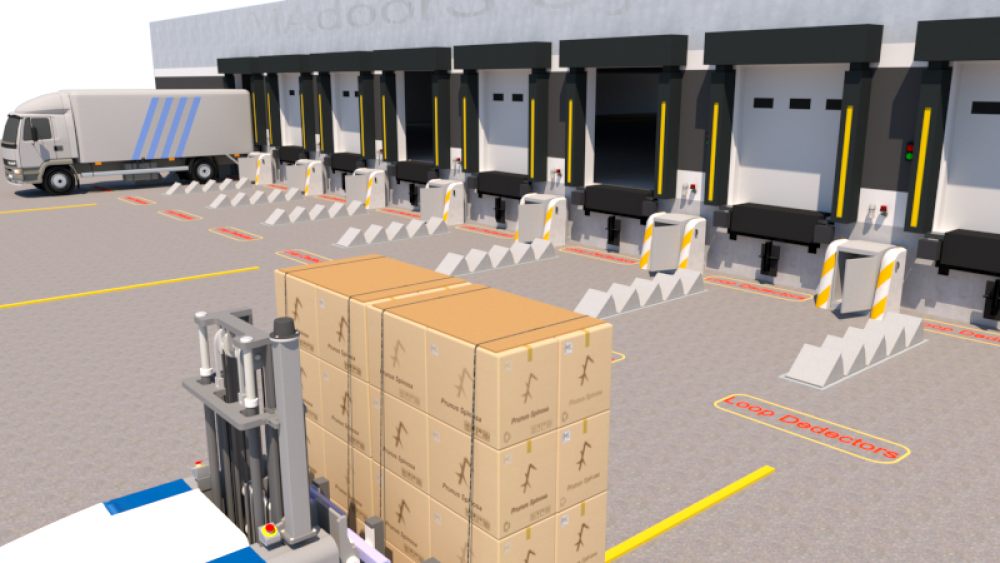

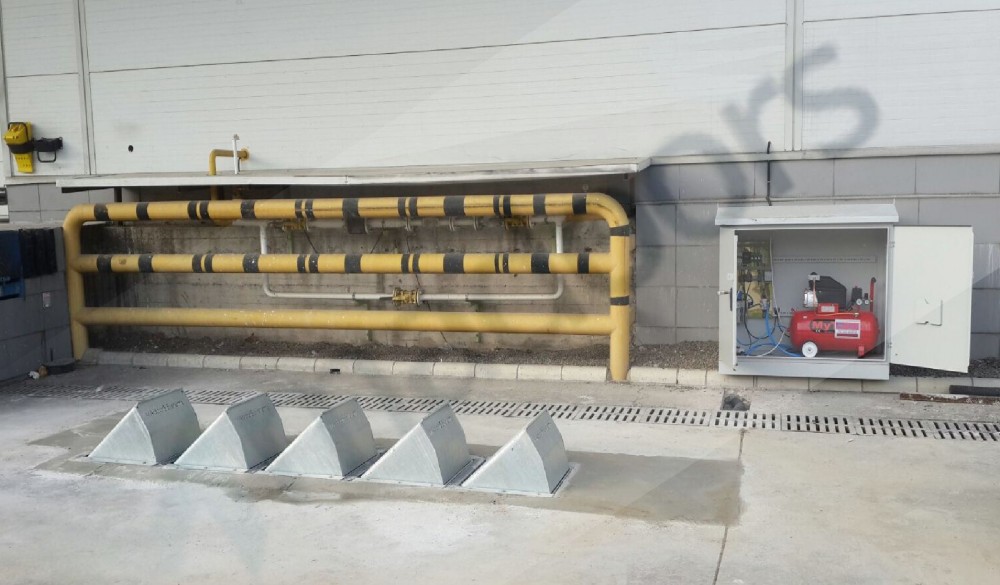

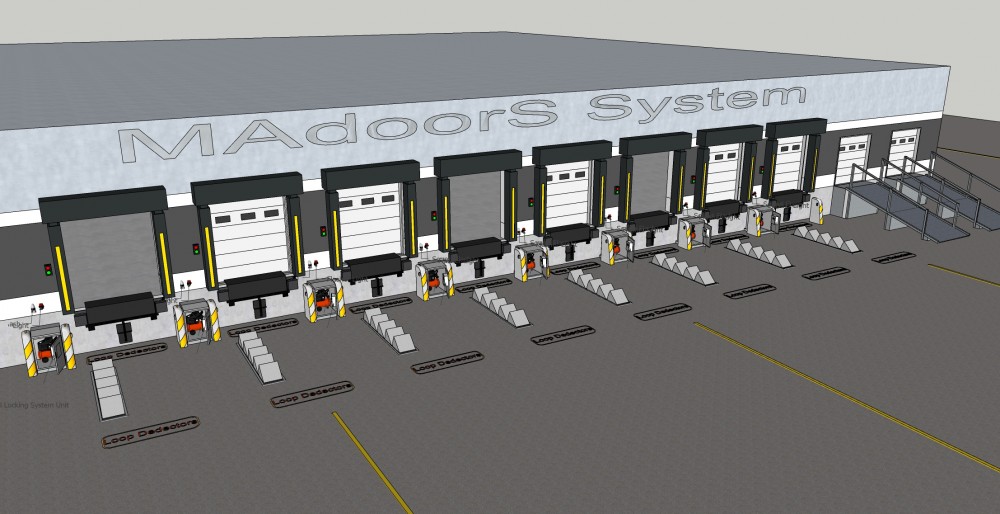

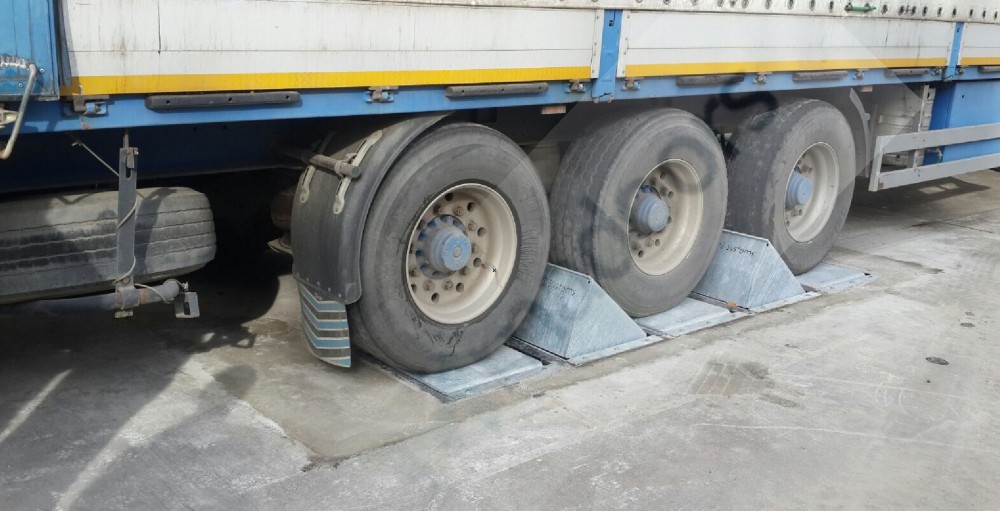

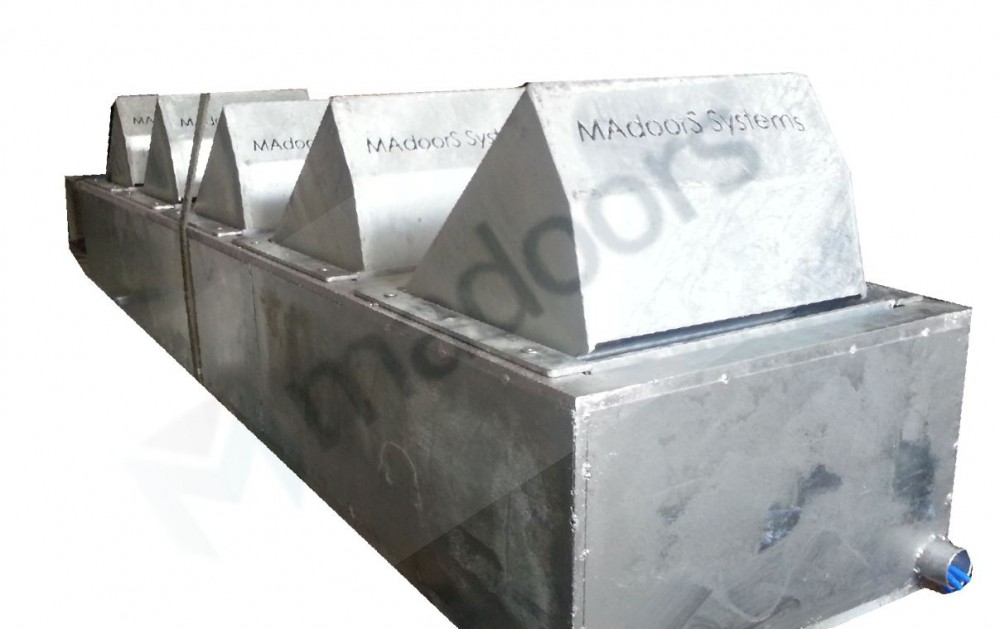

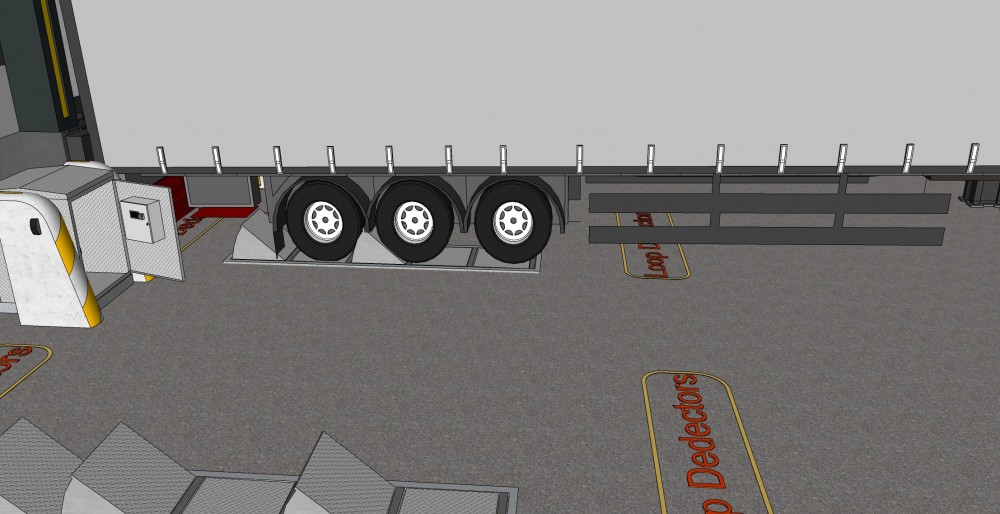

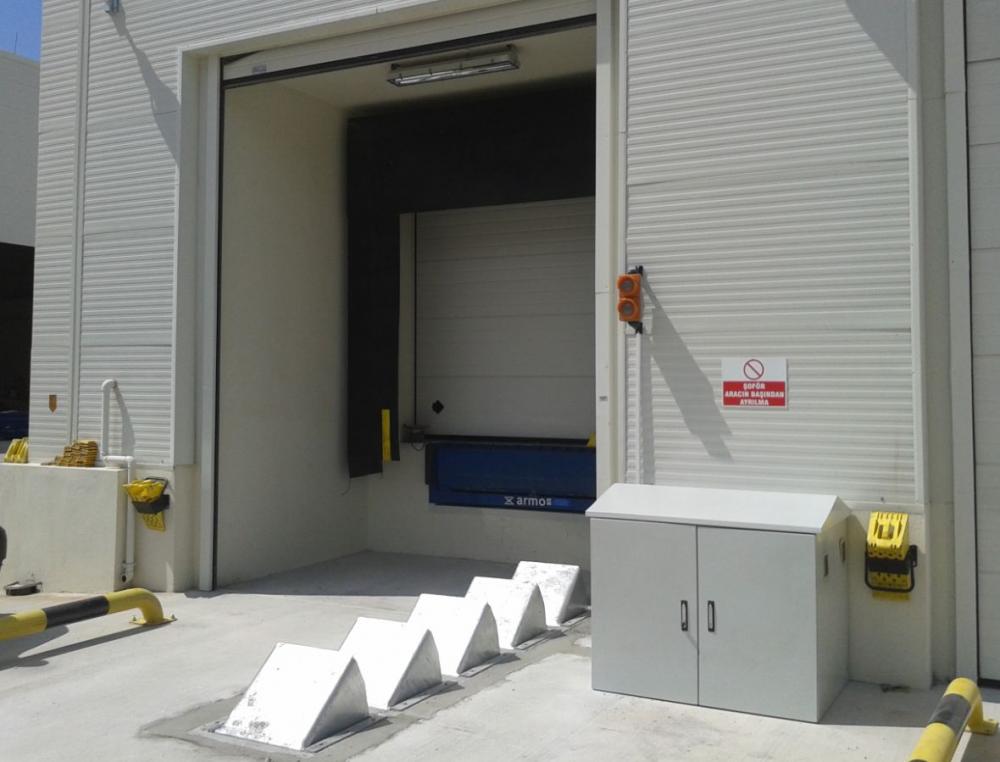

 An easy-to-use product The Automatic pneumatic or hydraulic chocks are activated via a single control panel No tools are needed to remove the chocks The plant is able to work in any weather condition Low maintenance costs (no motor or bearings to grease, no chains or pinions) A visual check is sufficient to guarantee the correct functioning of the system This system consists of 1 pit per loading bay, that works on one side of the truck, in which 2 rows of shifted wheel chocks are installed. The truck is locked thanks to the pneumatic lifting of the chocks near the wheels. In this way, any accidental movement of the vehicle is avoided. The shape of the automatic chocks has been studied so as to have no rough edges that could cause cuts or tyre punctures.

We’ve got a large selection of loading dock safety restraints, so if you need a consultation on how you can make your loading dock safer, contact us and we’ll help you eliminate accidents!

You can contact with us for further information.
